Mackworth CP440P

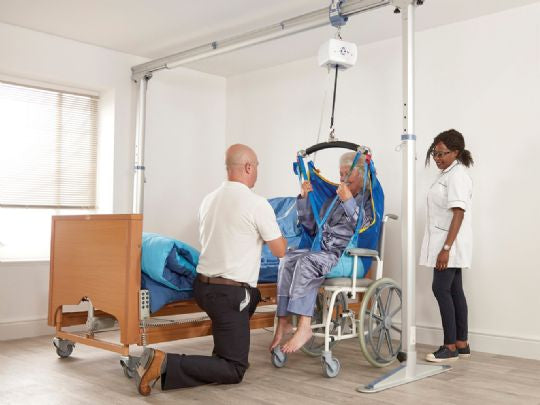

Mackworth portable ceiling lifts are designed to help individuals with mobility challenges by enabling caregivers to safely lift and transfer them. Unlike fixed ceiling lifts, these portable models can be moved and repositioned as needed, using a freestanding or gantry system that is quick to set up and take down. This makes them especially useful for travel, temporary use, or situations where a fixed installation isn’t possible or mobility needs change frequently.
Note: Carry bar sold separately
Videos
Features
Portable or Fixed Track - CP440P can be moved between fixed ceiling track and overhead gantry systems.
Lift Capacity - Transfer patients up to 440 lbs. (200kg).
Dual Control - Up, down, and emergency lowering on both hands and lift unit.
Power Saving - Auto power-off after approximately 30 seconds of non-use.
High Battery Capacity - Battery may support 50-60 lifts per charge.
Specifications
Max Safe Working Load: 440 lbs. (200 kg)
Lift Case: Non Flammable ABS Plastic
Total Weight (Unboxed): 9.9 lbs. (4.5 kg)
Dimensions (L / W/ H):8.19″ / 6.97″ / 5.87″
Rail Transfer: Manual
Lifting Rangę: Up to 82.68″ (2100 mm)
Lifting Speed (Unloaded): 1.38 “/s (35 mm/s)
Lifting Speed (Loaded): 0.98 “/s (25 mm/s)
Charger Input: 100-240V
Charger Output: 24 V - 1.330 A
Emergency Lower: Electric
Hand Control: Wired Electric 3 Button
In Track Charging: Not Available
Removable from Track: Tes
Duty Cycle: 15% use, 85% rest
Batteries: 2 x 12 V - 3.3 Ah (NiMH)
Portable or Fixed Track - CP440P can be moved between fixed ceiling track and overhead gantry systems.
Lift Capacity - Transfer patients up to 440 lbs. (200kg).
Dual Control - Up, down, and emergency lowering on both hands and lift unit.
Power Saving - Auto power-off after approximately 30 seconds of non-use.
High Battery Capacity - Battery may support 50-60 lifts per charge.
Max Safe Working Load: 440 lbs. (200 kg)
Lift Case: Non Flammable ABS Plastic
Total Weight (Unboxed): 9.9 lbs. (4.5 kg)
Dimensions (L / W/ H):8.19″ / 6.97″ / 5.87″
Rail Transfer: Manual
Lifting Rangę: Up to 82.68″ (2100 mm)
Lifting Speed (Unloaded): 1.38 “/s (35 mm/s)
Lifting Speed (Loaded): 0.98 “/s (25 mm/s)
Charger Input: 100-240V
Charger Output: 24 V - 1.330 A
Emergency Lower: Electric
Hand Control: Wired Electric 3 Button
In Track Charging: Not Available
Removable from Track: Tes
Duty Cycle: 15% use, 85% rest
Batteries: 2 x 12 V - 3.3 Ah (NiMH)
About
Portable Ceiling Lifts

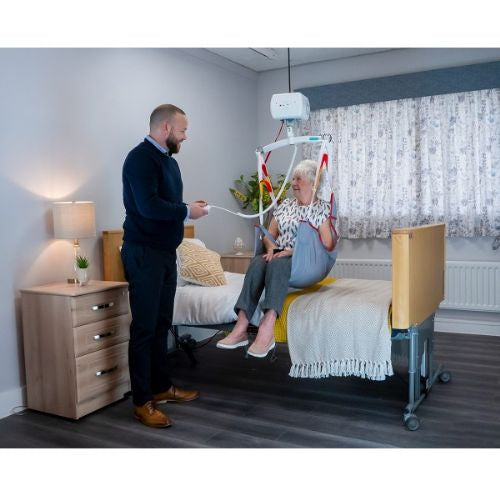

Designed to assist those who have mobility challenges, a Mackworth portable ceiling lift helps caregivers lift and transfer their patients. Unlike fixed ceiling lifts, portable ceiling lifts can be moved and repositioned as needed, as they are use a freestanding or gantry system that is easily set up and taken down to support needed support. These types of portable lift systems are helpful when traveling or where fixed solutions cannot accommodate or mobility needs alter frequently.
440 lbs. (200 kg)
Non Flammable ABS Plastic
9.9 lbs. (4.5 kg)
8.19″ / 6.97″ / 5.87″
Manual
Up to 82.68″ (2100 mm)
1.38 “/s (35 mm/s)
Whether you use the hand pendant, or the motor unit controls, you will experience an intuitive design for up and down commands. There are no extraneous bells and whistles to create confusion, or break downs.
